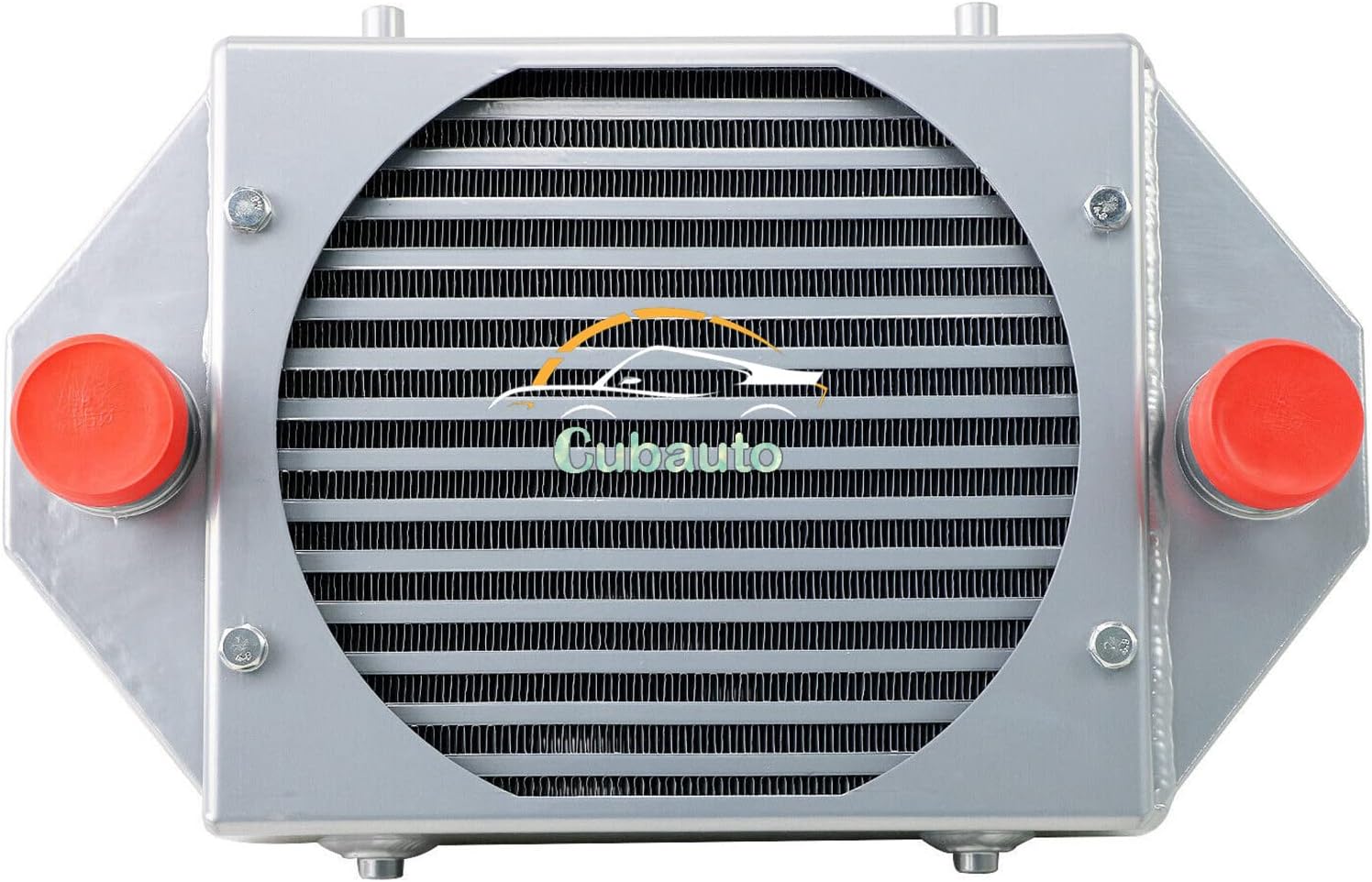

Aluminum Intercooler For 17-19 Can-Am Maverick X3 Turbo R DS RS XMR RC 2017 2018 2019 Upgraded Turbo Intercooler OEM Part Number: 707800613 (QTY 1)

Configuration: Core Size: 12" x 10.5" x 4 3/8" Overall Size: 17.5'' x 10.5" x 4 3/8" (Without fan) Applications: For Can-Am Maverick X3 Turbo 2017-2019 -Replaces OEM Part Number: 707800613 (QTY 1) Key Features: Air to air intercooler core High density, high quality core Bar and plate construction Fully TIG welds Mounting bungs Upgrade for 120hp, 154hp, and 172hp setups Hardware is included Pipes & hoses are not included Uses 10" SPAL fan 60% larger than factory 350+ CFM more air movement than the factory fan Can-Am Maverick X3 Turbo Upgraded Intercooler Installation Step 1: Remove the intake and intercooler plastic covers from the rear of the X3. Step 2: Remove the two 2x 10mm bolts Step 3: On the inside of the X3, remove the engine access panel located on the center of the rear firewall. Step 4: Remove the 2x 10mm bolts Step 5: Loosen the two hose clamps that secure the intercooler hoses to the intercooler. NOTE: The driver side intercooler hose is a bit trickier to reach but can be accessed from the driver side rear of the engine compartment. Step 6: Disconnect the intercooler fan Step 7: Remove the Intercooler from the vehicle Step 8: remove the 4x torx screws securing the intercooler fan to intercooler and swap the Fan onto the new Agency Power Intercooler. Step 9: Cut and remove the (4) plastic tabs so that they are flush with the side of the intercooler housing. NOTE: Make sure to cover the intercooler hoses to avoid dropping any debris into them during cutting. Step 10: Install this intercooler. Reverse steps 1-6 to complete the installation.

• Applications: Upgraded Intercooler for the Can-am Maverick X3 Turbo | DS | RS & RC
• This PLM upgraded CAM AN intercooler is guaranteed to outperform the stock intercooler! This allows you to stay in peak power for longer and safer conditions!
• This is an oversized intercooler so some trimming is required on the outer area where the intercooler sits! Super easy install!
• All our products are 100% fully tested to ensure top quality. Full set in box and 100% brand new.
• 1-Year Warranty for Every Item .Do not hesitate to get one!
